Air conditioning - Any recommendations please??

Like Tree884Likes
Closed Thread

LinkBack Thread Tools
Old 17-08-2009, 02:41 PM   #706
Junior Member

Join Date: Aug 2009
Posts: 6
hmmm? asking or reccommending? seriously speaking.. there all so many brands tt has inverter.. and specs r all different... n everywhere i go i hear different things. i'm so confused. *peng
Chunman is offline
Old 17-08-2009, 03:50 PM   #707
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
to many brands out there, different would be the functions it hav, total BTU, current(amp/watt) it consume.. so in your case, for system 2, jus get total compressor around 18,000BTU.. so tat it is used jus nice n not consume extra current jus becos of extra BTU..
chunlianghere is offline
Old 17-08-2009, 04:35 PM   #708
Supremacy Member

Join Date: Nov 2005
Posts: 6,080



I asked Hong Tar and this is what they quote me...



Optional 1

Item Scope of Work - Inverter Amount



[1] To supply and install one set of “Mitsubishi Electric” (R410 Gas) 25,590BTU multi split $2,300.00

inverter aircon, M/N: MXY2E20 / MSXYGA10 x 2 – low stock, need to check (c/w bracket)



[2] To supply and install one set of “Mitsubishi Heavy” (R410 Gas) 25,590 BTU multi split $2,170.00

inverter aircon, M/N: SCM45 / SKM28 x 2 (c/w bracket)



[3] To supply and install one set of “Panasonic” (R410 Gas) 19,100 BTU multi split inverter aircon, $2,320.00

M/N: CU2S18JKZ / CSS9JKZW x2 (c/w bracket)





Optional 2

Item Scope of Work – Non-Inverter Amount



[1] To supply and install one set of “Mitsubishi Electric” (R410 Gas) 18,254BTU multi split $1,900.00

non-inverter aircon, M/N: MUX3BD23 / MSB10 x 2 – no stock, need to check (c/w bracket)



[2] To supply and install one set of “Mitsubishi Electric” (R22 Gas) 16,378BTU multi split $1,770.00

non-inverter aircon, M/N: MUX3D23 / MSA10 x 2 – lno stock, need to check (c/w bracket)



[3] To supply and install one set of “Panasonic” (R22 Gas) 18,000 BTU multi split non-inverter $1,750.00

aircon,M/N: CU2C18JKZ / CSC9JKZw x2 (c/w bracket)



[4] To supply and install one set of “LG” (R22 Gas) 18,000 BTU multi split non-inverter $1,570.00

aircon,M/N: H2UC186 / HMNC096D x2 (c/w bracket)



To supply and install the air-conditioners in surface mount with standard one roll of G23 copper pipe, 1/2” thick Class “O” thermaflex insulation for indoor unit and Class “1” black rubber insulation for outdoor unit, 16mm pvc pipe, pvc trunking, stainless steel bracket and cable.

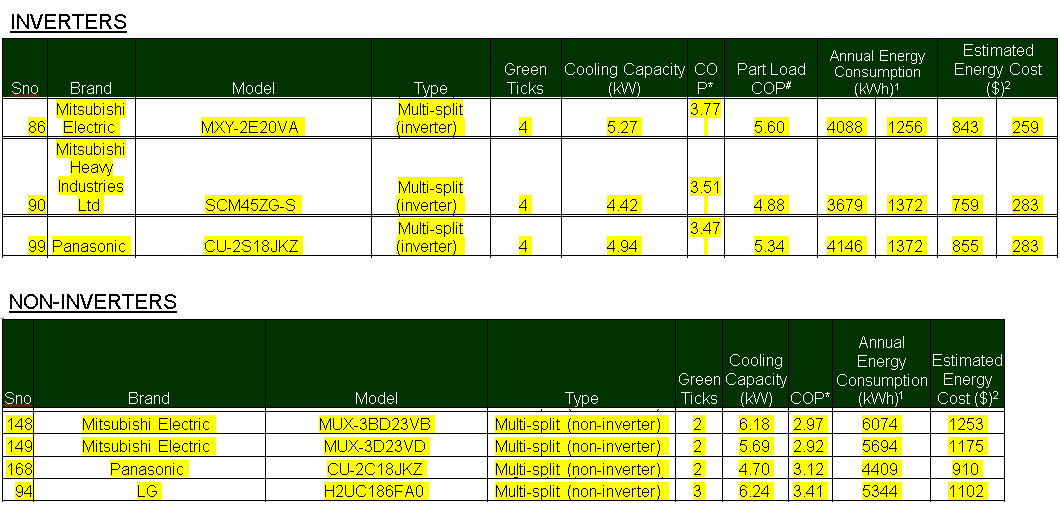

alrite, doing some simple cut n paste..


lets look at the Inverters,

-among the 3, ME seems to be the higher cooling capacity, COP, part load COP. (higher COP r better)
-but than if u c the total BTU of ME n MHI, they r the same.
-MHI hav lower energy consumption and energy cost.
-take note at the part load, ME is more lower consumption n energy cost than MHI.

so in this case, ME is better becos of the higher COP stated, n the time taken to cool the room wil be shorter, thus full load wil be shorter too, becos of higher cooling capacity(BTU) also.


look at non-inverters,

-from the Green Ticks stated, obviously LG is the winner.


LASTLY, it depends on your own decision, functions of different brands, model.

some important things to note also is tat, to hav either FAN mode, or it wil auto turn on fan for sometime after u press "off" on the remote control. this is to prevent bacteria, mould, bad smell from occurring..

Last edited by chunlianghere; 17-08-2009 at 04:43 PM..
chunlianghere is offline
Old 17-08-2009, 04:41 PM   #709
Junior Member

Join Date: Aug 2009
Posts: 6
woah... thank you!!! the info is very useful... appreciate your assistance... =D

But the fact that now there isnt "free" extended warranty for the inverters... i'm worried...
and the sound... i mean noise... how can i check if the aircon makes alot of noisE?

Last edited by Chunman; 17-08-2009 at 05:18 PM..
Chunman is offline
Old 17-08-2009, 06:00 PM   #710
Arch-Supremacy Member

mikezuper's Avatar

Join Date: Apr 2002
Posts: 15,689
some important things to note also is tat, to hav either FAN mode, or it wil auto turn on fan for sometime after u press "off" on the remote control. this is to prevent bacteria, mould, bad smell from occurring..
This FAN feature, we have to turn it on manually after we finish using Aircon to prevent bacteria, mould, bad odour etc2?
If yes, how long do we need to turn on the FAN?

Or there is Aircon there out in market that do this automatically, let say:
- Put Off-Timer at 03:00AM
- After it went Off, it switch on FAN for 15-20mins?

Hmm.. new stuff again.
mikezuper is offline
Old 17-08-2009, 06:15 PM   #711
Junior Member

Join Date: Feb 2002
Posts: 49
For system 1, only MHI and Daikin have auto fan drying mode. Daikin will fan dry for 1 hour, and MHI will fan drying for 2 hours after u switch off the aircon, all automatically. Other brands like ME, Panasonic dun have this feature, not too sure about Toshiba
vsml is offline
Old 17-08-2009, 06:29 PM   #712
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
woah... thank you!!! the info is very useful... appreciate your assistance... =D

But the fact that now there isnt "free" extended warranty for the inverters... i'm worried...
and the sound... i mean noise... how can i check if the aircon makes alot of noisE?
u mean the sound level? u can check it out at coolserve.com.sg. than look for the model lor. it is stated under sound level, XXdB..

but i tink u no need to worry abt the noise created. its very soft..
chunlianghere is offline
Old 17-08-2009, 06:37 PM   #713
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
This FAN feature, we have to turn it on manually after we finish using Aircon to prevent bacteria, mould, bad odour etc2?
If yes, how long do we need to turn on the FAN?

Or there is Aircon there out in market that do this automatically, let say:
- Put Off-Timer at 03:00AM
- After it went Off, it switch on FAN for 15-20mins?

Hmm.. new stuff again.
around 30mins wit full fan speed.

yup. there is. like Toshiba, 20mins of fan operation after turn off, it is automatic. many other brand also hav..
chunlianghere is offline
Old 17-08-2009, 06:38 PM   #714
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
For system 1, only MHI and Daikin have auto fan drying mode. Daikin will fan dry for 1 hour, and MHI will fan drying for 2 hours after u switch off the aircon, all automatically. Other brands like ME, Panasonic dun have this feature, not too sure about Toshiba
oh...ic. only system 1 hav.

yes, Toshiba hav!
chunlianghere is offline
Old 17-08-2009, 10:20 PM   #715
Senior Member

Join Date: Oct 2004
Posts: 1,855
1 coil of piping usually not enough for sys 2 usually. U need to top up $ on site when they come for installation on yr day. Yrs 3 room hdb flat?
terumo is offline
Old 17-08-2009, 10:43 PM   #716
Junior Member

Join Date: Feb 2002
Posts: 49
hi chunliang

I only done research on 8500Btu System 1 split aircon, so i know that Panasonic and ME dun have the dryer on their sys 1 FC unit. I assume MHI and DAikin Should have the dryer on all their sys 2/3/4 as a standard feature, since they have it on their 8.5k Btu units.

One other feature that i wanted is the Left/Right Direction Flap control which only MHI Sys 1 but the rest like Daikin/ME/Panasonic do not have. However, ME have this feature on their higher BTU split( ME have it on their higher BTU FC unit- can't remember if it was 18k or 24k Btu FC units)

Last edited by vsml; 17-08-2009 at 10:51 PM..
vsml is offline
Old 17-08-2009, 10:47 PM   #717
Senior Member

sunht's Avatar

Join Date: Jan 2000
Posts: 2,371


alrite, doing some simple cut n paste..

lets look at the Inverters,

-among the 3, ME seems to be the higher cooling capacity, COP, part load COP. (higher COP r better)
-but than if u c the total BTU of ME n MHI, they r the same.
-MHI hav lower energy consumption and energy cost.
-take note at the part load, ME is more lower consumption n energy cost than MHI.

so in this case, ME is better becos of the higher COP stated, n the time taken to cool the room wil be shorter, thus full load wil be shorter too, becos of higher cooling capacity(BTU) also.
.
So should we select based on higher COP or Lower Power Consumption? eg. ME has higher COP but MHI has lower power Consumption? (how come these two value are not consistent? i.e Higher COP should have lower power consumption?)
sunht is offline
Old 17-08-2009, 11:38 PM   #718
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
So should we select based on higher COP or Lower Power Consumption? eg. ME has higher COP but MHI has lower power Consumption? (how come these two value are not consistent? i.e Higher COP should have lower power consumption?)
to wat i tink, its better to go for higher COP.

becos as u c, sometimes we turn on aircon rite, we wan it to cool the room faster, as well as efficiency. but since after it reach it temperature, it wil be on part load for the rest of the nite, thus ME is lower than MHI on part load which is gd.

sometimes got to also depends on system-X u wan. Example: if wan get system 2, each fcu can only take 9000BTU. but the total compressor BTU is 25590. so no point getting tat xtra more BTU but nv use tat much, n also payin more for it.

so hav to look out for many factors also.



but than(TO Chunman) there is a mistake, MHI SCM45 on coolserve.com.sg stated BTU is 14139. Chunman, can u double check?
chunlianghere is offline
Old 17-08-2009, 11:48 PM   #719
Arch-Supremacy Member

mikezuper's Avatar

Join Date: Apr 2002
Posts: 15,689
For system 1, only MHI and Daikin have auto fan drying mode. Daikin will fan dry for 1 hour, and MHI will fan drying for 2 hours after u switch off the aircon, all automatically. Other brands like ME, Panasonic dun have this feature, not too sure about Toshiba
Hmm.. is all Daikin aircon has this feature? Hmm.. Time to read the manual now
mikezuper is offline
Old 18-08-2009, 12:20 AM   #720
Supremacy Member

Join Date: Nov 2005
Posts: 6,080
Hmm.. is all Daikin aircon has this feature? Hmm.. Time to read the manual now
nope, i dont tink all model hav. only FTKS25/35 model ba. tat is y 8,500BTU model hav.
chunlianghere is offline
