[Maylyn's Review ~ Networking] ASUS WL-330NUL

Like Tree64Likes
Reply

LinkBack Thread Tools
Old 23-05-2013, 09:05 AM   #1
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
[Maylyn's Review ~ Networking] ASUS WL-330NUL

Road warriors should rejoice with the new ASUS WL-330NUL pocket size router from ASUS. ASUS doesn't just make routers for home/SOHO users but they know frequent travelers need something small and convenient to bring along to help them stay connected at anytime of the day.

Stay connected wherever you go!

The ASUS WL-330NUL is the world’s smallest pocket router at only 17.5g in weight and 6.5cm long. Whenever you’re traveling or simply at a cafe, getting online becomes so easy with all your devices using this USB stick-sized router. Whether only Wi-Fi or wired LAN are available, it creates your own private network and allows speedy cross-device communication, making it extra-useful in staying connected anywhere.

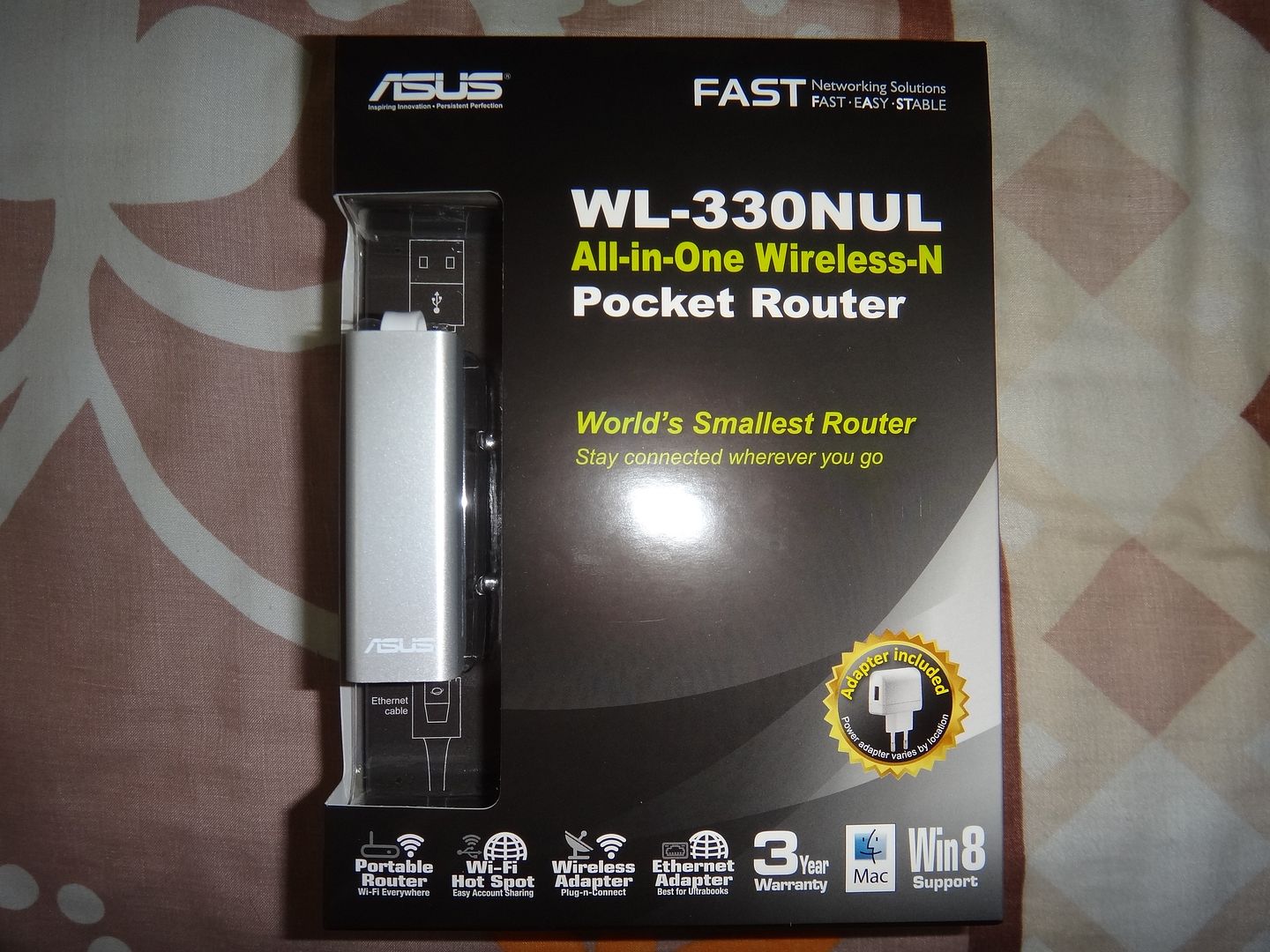

Some ASUS WL-330NUL package views







Actual ASUS WL-330NUL





ASUS@SG and newkidontheblock like this.
__________________
ASUS SG/TW OPBG and Networking Power User
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:05 AM   #2
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Overview

What is ASUS so different from the rest of the competitors? so ASUS make something so good that have rise to the occasion? Let's find out

Stay connected wherever you go!



World's smallest pocket router



Hotspot Sharing



USB Ethernet Adapter



Wireless Adapter



Several ways to power the ASUS WL-330NUL

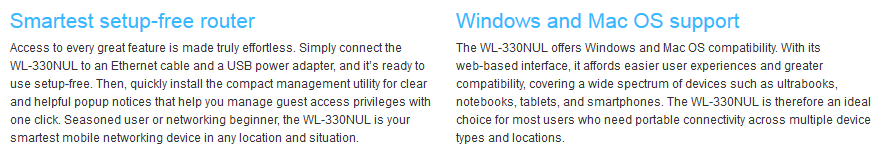

Smartest setup free router / Windows and Mac support

ASUS@SG and newkidontheblock like this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 23-05-2013 at 09:37 AM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:05 AM   #3
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Setup

I'm going to present my setup in steps so users are able to follow to configure their ASUS-330NUL

Utility setup is required first before the initial configuration , just follow the instruction prompt on the screen after plugging into any USB 2.0 port







Once you are done, launch your browser pointing to 192.168.1.1, you will be redirected to the ASUS-330NUL administration page

You will need to enter the 8 digit found at the side of the ASUS-330NUL for authentication



Various settings menu are shown on the left panel

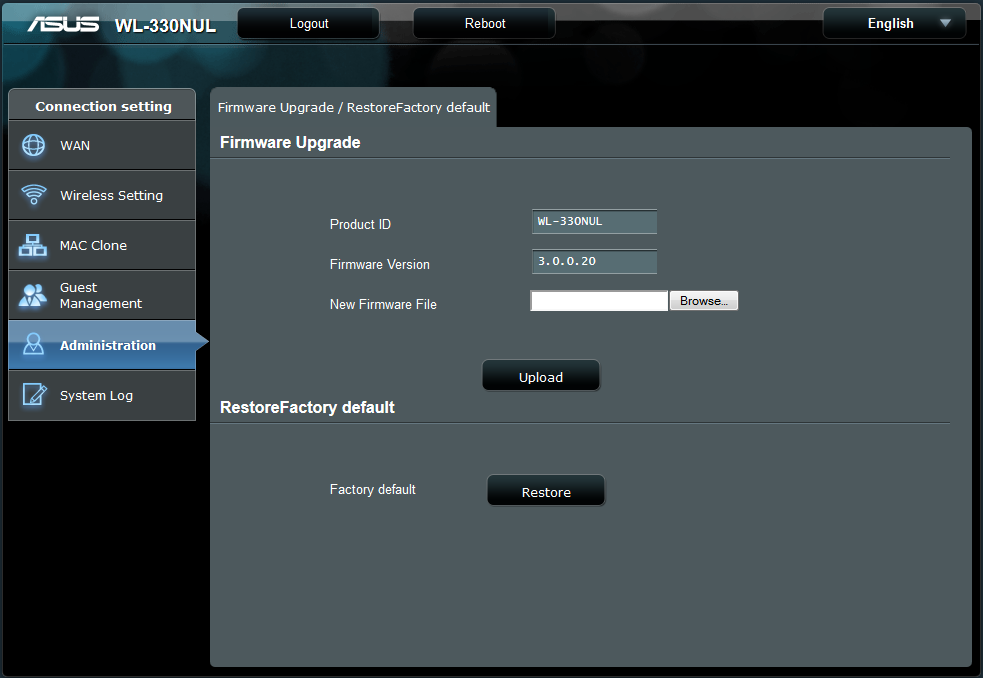

First stop, please update the ASUS-330NUL default firmware (3.0.0.20) to the latest (3.0.0.23) there are numerous fixes as shown below, you can download it from

https://www.asus.com/Networking/WL33...rt_Download_30





Firmware updating in progress

newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 25-05-2013 at 05:24 PM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:06 AM   #4
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Wireless Setting

You are able to configure both private and guest wireless settings as deem fit or use the default



Mac Clone

Mac Clone function is very useful if the premises you are in require specific Mac address to connect to the Internet, thus allowing other devices to able to connect to the Internet as well



Guest Management

newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 04:13 PM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:06 AM   #5
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
So how's the performance?

Setup

Internet Connection ~ ViewQwest 300Mbps
Connection Type ~ USB Ethernet Wireless mode (Wireless Card mode)
Frequency ~ 2.4GHz N mode (AES)
Distance ~ Optimal (2m)





SpeedTest-SingTel



SpeedTest-SGIX



SpeedTest-ViewQwest



BBQ-Amazon Singapore



Not too shabby results at all, taking into consideration of it's size, it's still capable to deliver 30+Mbps download and 20+Mbps upload
Nevertheless it's the various mode of operation that one might want to take a serious look, it's size, flexibility and ease of use in different scenarios is something none other makers have yet to come out with

Job well done ASUS ^^ for scoring the world first pocket router in this form factor
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 04:53 PM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:38 AM   #6
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Before any jealous critics comment that it's only capable of delivering so "low" speed, please back your comments with proof with something similar in size
Bear in mind, the above test it's conducted in 2.4GHz wireless

Want top speed? it's can be done as well, by using the Ethernet Adapter mode but it will ease to be a router/wireless mode (not able to perform wireless and router function)





SpeedTest-SGIX



SpeedTest-SingTel



SpeedTest-ViewQwest



BBQ-Amazon Singapore



Good enough? hehe nothing strange with these results as it's capping the 100Mbps LAN Port with overheard
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 06:12 PM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 09:39 AM   #7
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Reserved for any new updates

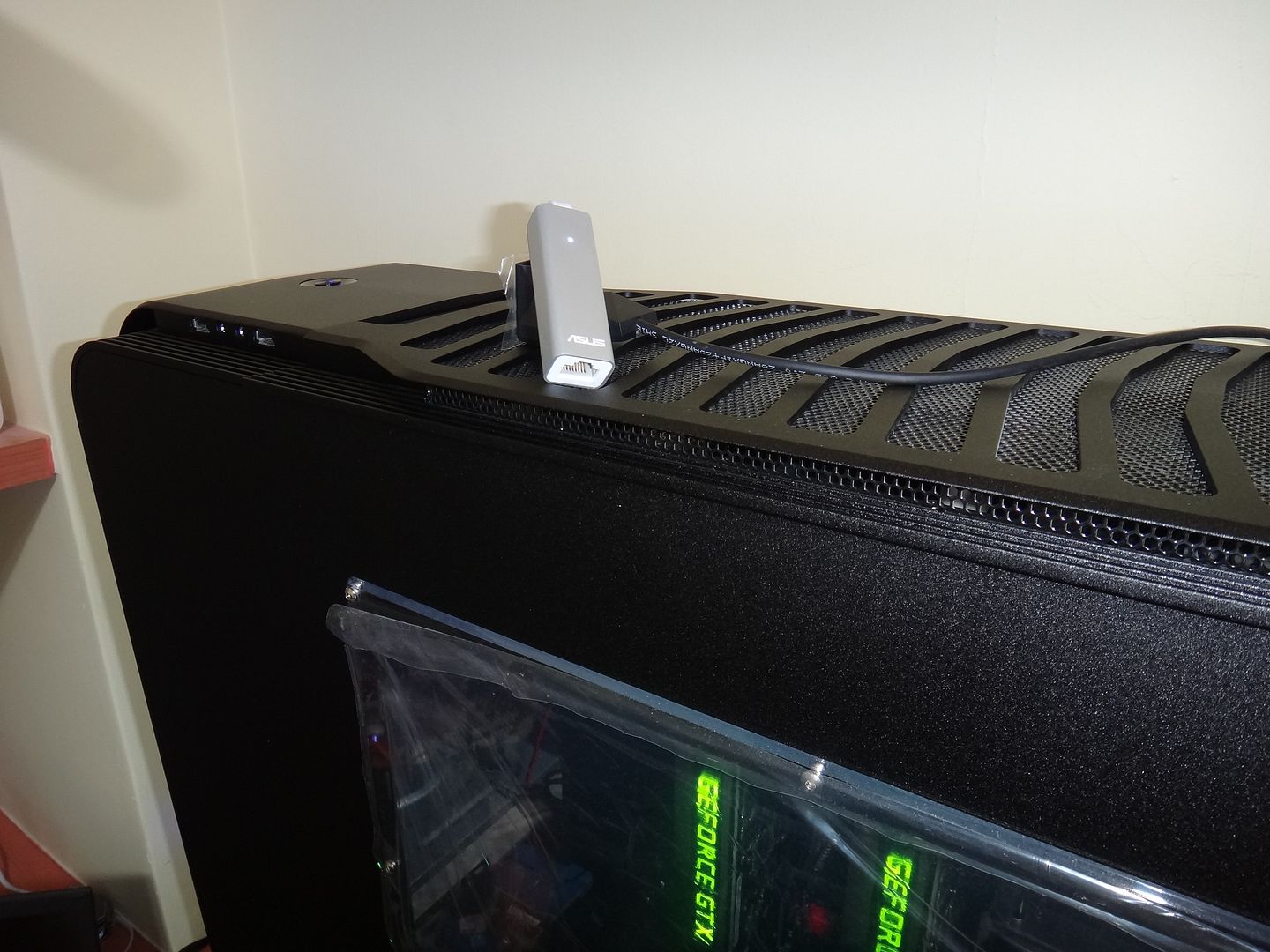

ASUS-WL330NUL with supplied power adapter (it's 3 pin version)



newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 06:11 PM..
maylyn is offline   Reply With Quote
Old 23-05-2013, 05:23 PM   #8
High Supremacy Member

Join Date: Apr 2009
Posts: 29,456
I saw the hardware specs...it is Realtek
newkidontheblock likes this.
ArcticCheetah is online now   Reply With Quote
Old 24-05-2013, 04:23 PM   #9
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
I saw the hardware specs...it is Realtek
Anything wrong with Realtek? cheaper chipset manufacturing, people wants to complain, premium chipset and better manufacturing, people wants to say it's too expensive

You will get to see another ASUS networking product using Realtek coming soon

newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 07:24 PM..
maylyn is offline   Reply With Quote
Old 25-05-2013, 03:57 PM   #10
Arch-Supremacy Member

Inix's Avatar

Join Date: Jan 2000
Posts: 13,530
If anything, I'll buy it for the fact that it shares Wireless from Wireless. That's something which most such small devices are not able to do yet.
newkidontheblock likes this.
__________________
Life's A Bitch,
Love It

[IMG]http://openflights.org/banner/inix.png[/IMG]
Inix is offline   Reply With Quote
Old 25-05-2013, 05:22 PM   #11
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Setting up ~ Part 1 is done, Part 2 will be up tonight
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User
maylyn is offline   Reply With Quote
Old 26-05-2013, 04:48 PM   #12
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
Setting up part 2 and performance indicators up
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User
maylyn is offline   Reply With Quote
Old 26-05-2013, 04:56 PM   #13
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
If anything, I'll buy it for the fact that it shares Wireless from Wireless. That's something which most such small devices are not able to do yet.
That's right it's something which ASUS has accomplished first when most of other maker "small" devices are not able or yet to do it
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User
maylyn is offline   Reply With Quote
Old 26-05-2013, 05:52 PM   #14
Supremacy Member

ralfale's Avatar

Join Date: Jan 2000
Posts: 5,406
I bought this on day 1 of launch monday.

Its working great for my overseas trip. Its an excellent product at an amazing size.

Im loving this.
newkidontheblock likes this.
ralfale is offline   Reply With Quote
Old 26-05-2013, 06:03 PM   #15
Master Member

maylyn's Avatar

Join Date: Jul 2007
Posts: 4,676
I bought this on day 1 of launch monday.

Its working great for my overseas trip. Its an excellent product at an amazing size.

Im loving this.
Nice it's a must buy for road warriors this shows ASUS is listening what people wants and has delivered and newer innovation to deliver better products will never ends
newkidontheblock likes this.
__________________
ASUS SG/TW OPBG and Networking Power User

Last edited by maylyn; 26-05-2013 at 06:13 PM..
maylyn is offline   Reply With Quote
