DRAM Voltage show PINK colour Text ......

[Bui Kia]

Hi All hardware guru .....

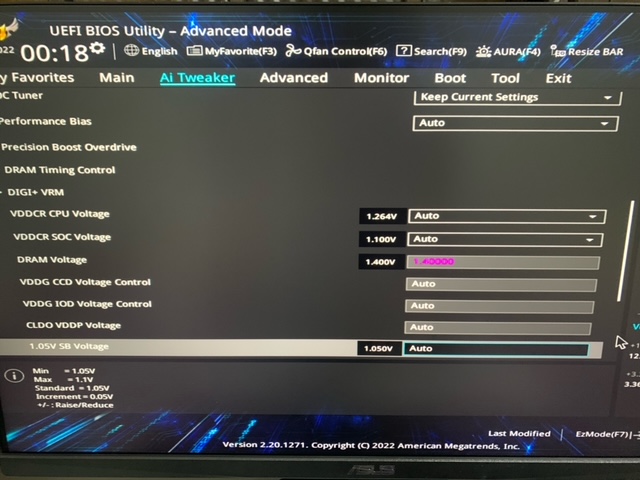

I don't overclock my pc but i realise under bios setting > AI Tweaker
the DRAM Voltage show PINK colour Text

Is all my setting ok ? i think i never change anything at all and wondering why the text is in PINK colour



[NightRaven49]

Hi All hardware guru .....

I don't overclock my pc but i realise under bios setting > AI Tweaker
the DRAM Voltage show PINK colour Text

Is all my setting ok ? i think i never change anything at all and wondering why the text is in PINK colour

looks like they are klevv cras xr kits. this 1.4v is set as part of xmp, and the speeds are rated at this voltage, so it should be fine. maybe asus bios colour the text pink as it is quite high, jedec spec calls for 1.2v, most xmp profiles is 1.35v. as long as u don't push it higher, there shouldn't be anything to be worried about.



[Bui Kia]

looks like they are klevv cras xr kits. this 1.4v is set as part of xmp, and the speeds are rated at this voltage, so it should be fine. maybe asus bios colour the text pink as it is quite high, jedec spec calls for 1.2v, most xmp profiles is 1.35v. as long as u don't push it higher, there shouldn't be anything to be worried about.

yup , i am using 16GB Klevv Cras X DDR4 4000MHz (8x2)

i don't do overclocking and i just wonder why the text in pink colour
so base on my screenshot , all is the setting is fine ? just ignore the pink colour text ?



[NightRaven49]

i don't do overclocking and i just wonder why the text in pink colour

technically enabling xmp/docp is overclocking ram

so base on my screenshot , all is the setting is fine ? just ignore the pink colour text ?

yes. u will need the 1.4v to hit ddr4-4000.



[wwenze]

Means the DRAM very sexy lor

1.4V isn't even that high anyway, in fact it is normal for overclocking RAM beyond the usual 1.35V 3200MHz CL16 RAM. However compared to JEDEC spec of 1.2V 3200MHz CL22 is high so some system see liao scared.



[Bui Kia]

Means the DRAM very sexy lor

1.4V isn't even that high anyway, in fact it is normal for overclocking RAM beyond the usual 1.35V 3200MHz CL16 RAM. However compared to JEDEC spec of 1.2V 3200MHz CL22 is high so some system see liao scared.

sound very chim and complicated....i dunno all this theory that why i dun anyhow adjust
if not later CHI BA BOOM



[Phen8210]

1.4 is ok, before ryzen optimized that's what i used.
