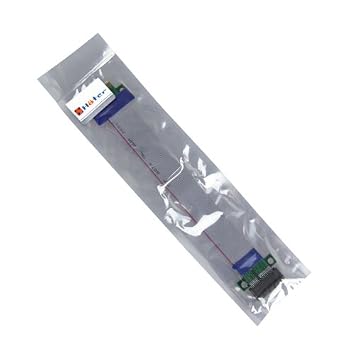

PCI-E Express 1X Riser Card with Flexible Cable

[wuming52]

Hi,

does any of the bros here know where to sell this item in Sim Lim Square?

As i am running on Asus GTX 980ti 2 way SLI and I have a Asus Soar Strix Soundcard in between. I want to move the soundcard to the last PCIe slot but my Graphic Card is in the way and current cause my 2nd card's heat is higher than the 1st card..

Wanted to improve the ventilation of my set up..

Thanks



[jtjt00]

Try Worldwide Computer at 6th floor facing lifts, SLS.



[Encrypted11]

Not a local option, but I used to buy some extender/converter PCBs etc kind of stuff from here, they work fine.

http://www.bplustech.com/index.html



[wuming52]

Try Worldwide Computer at 6th floor facing lifts, SLS.

Thanks bro will check this out



[wuming52]

Not a local option, but I used to buy some extender/converter PCBs etc kind of stuff from here, they work fine.

http://www.bplustech.com/index.html

THanks bro now surfing this webby



[Encrypted11]

Not sure how much is the shipping these days, but I think I paid ~S$20 per shipment (DHL Express) each time I brought something in.. total about 3 occasions about 3-4 years back. Primarily for laptop eGPU project wares.

Depending on what type of PCB stuff you buy, there are actually quite a few of them screwed to sort of a PCB reinforcement plate which helps with build quality.

Very well/tightly packed in hard cardboard box, they are placed in esd bags.

Even if you end up not buying from them, I think may just give you a better idea of what you want and probably can try sourcing for equivalents locally.



[wuming52]

Not a local option, but I used to buy some extender/converter PCBs etc kind of stuff from here, they work fine.

http://www.bplustech.com/index.html

sorry bro, if i order tru this website. How long does it need to reach Singapore? Sorry for this noob question



[Encrypted11]

sorry bro, if i order tru this website. How long does it need to reach Singapore? Sorry for this noob question

I checked my email archives, I can't really find records sorry. It was paid via paypal. But iirc few days to process, (maybe 2-5 work days) but once shipped it'll reach sinkie land very fast, they dispatched from taiwan office.

Can contact them first, I think they take about 2 days average to respond. They do reply in english with simple vocab.



[wacko]

Have you thought it through? Your casing only has 7 PCI slot openings, where will the sound card go? I have actually done exactly the same thing, and even with sufficient PCI openings, this cable will not work, as the female end of the socket will interfere with the base plate of the casing where the motherboard is on. You will need a 90 degree PCIe connector, plus this cable.

And in any case, you can quite easily find this cable in SLS.



[wuming52]

Have you thought it through? Your casing only has 7 PCI slot openings, where will the sound card go? I have actually done exactly the same thing, and even with sufficient PCI openings, this cable will not work, as the female end of the socket will interfere with the base plate of the casing where the motherboard is on. You will need a 90 degree PCIe connector, plus this cable.

And in any case, you can quite easily find this cable in SLS.

Hm.. yeah i am thinking this right now.. If i going to put my sound card to the last PCIe 16x slot.. will there be any performance lag if I put 3 way Sli?



[wacko]

Hm.. yeah i am thinking this right now.. If i going to put my sound card to the last PCIe 16x slot.. will there be any performance lag if I put 3 way Sli?

Huh? 3 way SLI is just going to make the temperatures worse no? I thought you are trying to lower the temps? Not really sure what exactly do you want to achieve.



[wuming52]

Huh? 3 way SLI is just going to make the temperatures worse no? I thought you are trying to lower the temps? Not really sure what exactly do you want to achieve.

ya i am tryin to lower the temp.. i am just wondering and curious if i put my sound card to the last PCIe 16x slot will it slow down my graphic performace to 16x to 8x? i know right now they are both running at 16x.

And if I am getting a 3rd 980ti with my soundcard still stick inside at last PCIe 16x slot. Will it consider 16x, 8x, 8x & 8x?



[wuming52]

Have you thought it through? Your casing only has 7 PCI slot openings, where will the sound card go? I have actually done exactly the same thing, and even with sufficient PCI openings, this cable will not work, as the female end of the socket will interfere with the base plate of the casing where the motherboard is on. You will need a 90 degree PCIe connector, plus this cable.

And in any case, you can quite easily find this cable in SLS.

I am actually worry about the male that connect to the mobo. As the 2nd PCIe 1x slot is very near to my 2nd 980ti's heatsink pipe. It will not interfere to the base plate of the casing if i put it to the last slot the place where i secure my vga using screws. The last slot is outside the base.



[wuming52]

Have you thought it through? Your casing only has 7 PCI slot openings, where will the sound card go? I have actually done exactly the same thing, and even with sufficient PCI openings, this cable will not work, as the female end of the socket will interfere with the base plate of the casing where the motherboard is on. You will need a 90 degree PCIe connector, plus this cable.

And in any case, you can quite easily find this cable in SLS.

are you talking about this?

http://www.lazada.sg/oh-new-pci-e-pci-express-1x-adapter-riser-card-90-degree-for-1userver-chassis-intl-4723451.html



[bunnypangsai]

I have this riser.. Can let it go if I don't need it



[wacko]

ya i am tryin to lower the temp.. i am just wondering and curious if i put my sound card to the last PCIe 16x slot will it slow down my graphic performace to 16x to 8x? i know right now they are both running at 16x.

And if I am getting a 3rd 980ti with my soundcard still stick inside at last PCIe 16x slot. Will it consider 16x, 8x, 8x & 8x?

you have to check your mobo manual.

I am actually worry about the male that connect to the mobo. As the 2nd PCIe 1x slot is very near to my 2nd 980ti's heatsink pipe. It will not interfere to the base plate of the casing if i put it to the last slot the place where i secure my vga using screws. The last slot is outside the base.

oh I see, so you have 8 PCI slot openings for your casing? you have a rather unusual case, so I am not sure what the physical contraints are. if putting the soundcard in the 8th slot doesn't interfere with the base mounting plate for the mobo, then you may not need the 90 degree joint.

are you talking about this?

http://www.lazada.sg/oh-new-pci-e-pci-express-1x-adapter-riser-card-90-degree-for-1userver-chassis-intl-4723451.html

yes.



[wuming52]

like i said.. the 2nd PCIe 1x slot is directly below my 2nd VGA 90 degrees PCIe expansion will touch the hitsink of my 2nd card i still do not know yet T.T

And yes i have an 8th slot for my casing.. my casing is Inwin D Frame



[dumboi2]

Another option is to use an external DAC and free up the pcie lane.



[wuming52]

i have tried.. the riser is in the way of my 2nd sli card.. hence had to remove the sound card.. damn..



[wacko]

i have tried.. the riser is in the way of my 2nd sli card.. hence had to remove the sound card.. damn..

what do you mean by in the way? as in the ribbon cable from the riser touches the GPU shroud? if it does, it doesn't matter, both items are insulated. my riser cable is in the 2nd PCIe1x slot, and my mobo's PCI layout is very similar to yours. no issues with my set up so far.
