Air purifier? - Part 2

[WussRedXLi]

I am not sure where are the discrepancies coming from but where I live it is actually lower:

I can also get the Daikin MCK75P URURU with humidifying option here for around S$600 or Daikin MC70L without humidifying for S$650 and then buying humidifier separately. But it seems Daikin MC70L is quite outdated compared to Sharp and Hitachi.

Bro, where do you live then? Pls note, the aqicn numbers for UAE are 1-hr PM2.5 figures (can just look at the shape of the graph/bar chart).
If UAE/Dubai environment ministry gives you 3-hr or 24-hr running averages, that's a different animal. AQI sources from the official sources from UAE, just that it's raw concentration convert to AQI 1hr. No health advisory is available for shorter term 1 to 3 hrs, but I can point you to the below in which the 8-hr figure is endorsed by US EPA

Well, I don't know. Up to you, I found out that the MC70x has a CADR of 341 m3/hr. Same ballpark as the Samsung AX40.

If you can buy those wick based humidifiers/air coolers, it's probably the same. 1 more extra machine taking up space though!

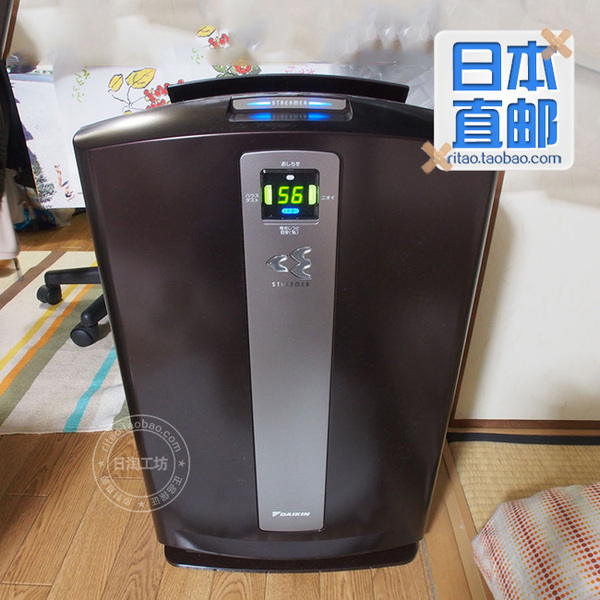

I believe the TCK70 mentioned by bro mik1984 is a Japanese Domestic Model?

MCK70 and TCK70 日本代购 直邮
http://world.taobao.com/item/43214104143.htm?spm=a312a.7700714.0.0.lAR74E#detail



[networked]

Hi any bros saved the taobao link for the taobao ax40 custom filters?

Now 65daigou have free agent fee. Want to buy some as spare stocks.



[stiwipl]

Bro, where do you live then? Pls note, the aqicn numbers for UAE are 1-hr PM2.5 figures (can just look at the shape of the graph/bar chart).
If UAE/Dubai environment ministry gives you 3-hr or 24-hr running averages, that's a different animal. AQI sources from the official sources from UAE, just that it's raw concentration convert to AQI 1hr. No health advisory is available for shorter term 1 to 3 hrs, but I can point you to the below in which the 8-hr figure is endorsed by US EPA

Dubai is spread out, so it seems there are different diagnostic stations at different parts of Dubai. I am living below Palm Jumeirah, so the proper station to measure would be Emirates Hills which is significantly less polluted than the Zabeel Park which is downtown.



[WussRedXLi]

Hi any bros saved the taobao link for the taobao ax40 custom filters?

Now 65daigou have free agent fee. Want to buy some as spare stocks.

I wouldn't recommend the customised filters already, at ~ sgd40 a piece.

Just DIY cut the 40x30x2.5 or 30x30x2.5 filters.
This one has about 10 more folds than the customised ones, so that's how I could get the end result of about 230-240 m3/hr (based on anemometer wind speed vs originals). Use this for daily use, you can change every 2-3 months, no issue.

http://world.taobao.com/search/sear...np_cb&abtest=_AB-LR854-LR895-PR854-PV895_2352


You can buy the originals for more critical uses.



[WussRedXLi]

Dubai is spread out, so it seems there are different diagnostic stations at different parts of Dubai. I am living below Palm Jumeirah, so the proper station to measure would be Emirates Hills which is significantly less polluted than the Zabeel Park which is downtown.

Yeah....not sure what is happening at Zabeel PArk. Past 5 days were all purple or brown. The WTC, Zabeel Palace and Burj Khalifa are all there.

Emirates Hills is much better.

It's really a big difference. Despite the fact that it's only about 20km from your place to Zabeel.

Downtown Zabeel, high-class luxurious living where you'll have everything that life can possibly offer. Including cancer, heart attack and stroke.

Zabeel Park



[networked]

Thanks for the fast reply.

Bo bian, i missed 2 times the qoo10 sales for the filters.

The page u posted links to alot of customised Hepa. May I know which one to get?

I am trying to get one that is for ax40 so 65DG can purchase for on my behalf without much hassle on customization on size.



[WussRedXLi]



[WussRedXLi]

Thanks for the fast reply.

Bo bian, i missed 2 times the qoo10 sales for the filters.

The page u posted links to alot of customised Hepa. May I know which one to get?

I am trying to get one that is for ax40 so 65DG can purchase for on my behalf without much hassle on customization on size.

Oh...sorry, it's this one.
http://world.taobao.com/item/411632...35c5c411814946c3&spm=a312a.7700714.0.0.S8Lh0H

Just DIY cut. Trust me, you won't regret for regular use during non hazy days where you don't need the extra horsepower. If you get the 400x300mm one, you most probably can also use for your other APs.


Just email the qoo10 Happy Mall and ask if you can have sgd50 each for 4pcs ba.

Get 20pcs of the RMB25/RMB40 百性 HEPA.

Then you are set for life.



[networked]

Oh...sorry, it's this one.
http://world.taobao.com/item/411632...35c5c411814946c3&spm=a312a.7700714.0.0.S8Lh0H


Just email the qoo10 Happy Mall and ask if you can have sgd50 each for 4pcs ba.

Get 20pcs of the RMB25 百性 HEPA.

Then you are set for life.

WRX, the measurements show are 尺寸 : 30*30*2.5厘米?

this fits for our ax40 ? does it need further sealing or some sort? the picture shows its bare at the edges.

I look reference to kimsim website and noticed that ax40 is Samsung AX40 (310x281x45mm) ?



[WussRedXLi]

I know what's the difference already.....

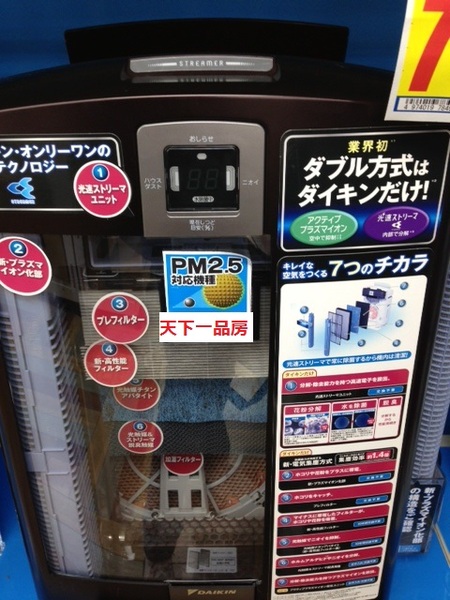

The Daikin TCK70P, ACK55 and some others are the JDM models. 100V. Transformers needed here or Dubai.

Dubai and SG (240V) are using the MC70, MC55 etc. Eg the ones you see on gumtree/carousell.com.sg


The Japs, as usual, reserve the best for the JDM or Japanese Domestic Market. So that one is 99% 1 pass.

http://world.taobao.com/item/38153224786.htm?spm=a312a.7700714.0.0.lAR74E#detail

The filter is very different, so many more pleats (need that due to more pressure drop)

99% pass mentioned here for the JDM TCK70P, but here it does say electrostatic HEPA already

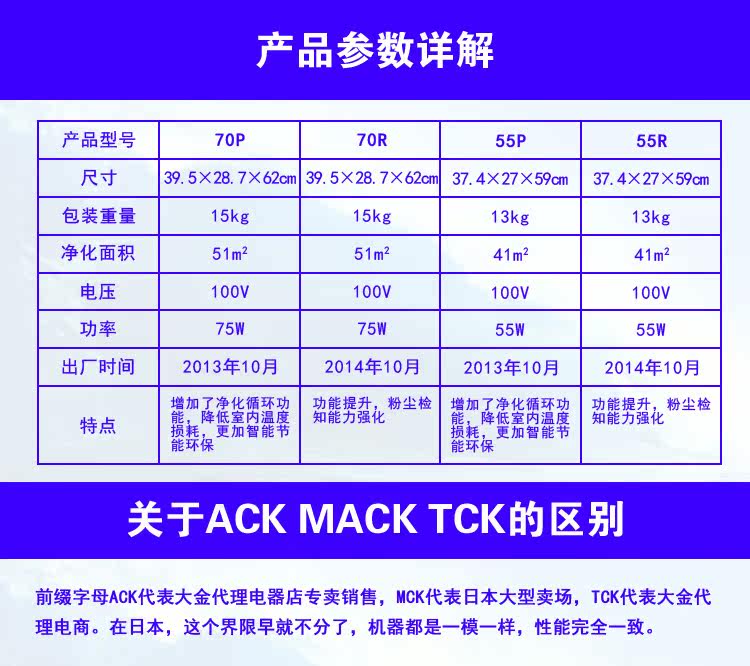

It says they are all the same, TCK, MACK, ACK

There is a 10 minute video in this seller's listing

http://world.taobao.com/item/430179...805cb382b56a7117&spm=a312a.7700714.0.0.lAR74E



[WussRedXLi]

WRX, the measurements show are 尺寸 : 30*30*2.5厘米?

this fits for our ax40 ? does it need further sealing or some sort? the picture shows its bare at the edges.

I look reference to kimsim website and noticed that ax40 is Samsung AX40 (310x281x45mm) ?

Yes, have to cut along the pleats (ie in the same direction of the pleats) and get it down to 280mm). Then the filter is 300mm while one side of the AX40 filter cavity is 310mm. That 10mm you plug up with some rolled up plastic packaging/bubble pack that comes with the china HEPA.

More than sufficient from now till next year Aug or so. Heck, even for 2014 levels it's more than sufficient if you are not ngeow, that few tens of m3/hr difference has no real bearing in real world, even for some very very sensitive folks in the 2015 El Nino and Haze thread in EDMW.....much more sensitive than me and you probably....coz they already start warning about their symptoms starting from about 40-50ug/m3 onwards after only about 2-3hrs (forget about 24-hr PSI and its health advisories)

Unless you are talking about a premature infant, then yep....maybe I'd not recommend the China HEPAs.


This is the difference between 430 m3/hr CADR vs 323 m3/hr CADR, ard the same % difference as 240m3/hr vs 323 m3/hr.

IQAir 250 vs Samsung AX40
Cigarette smoke, 0.1-0.2 microns thereabouts for majority of the particles
The PM distribution range is very narrow.

So with the above evidence as support, seriously not having 99.9% sealing is not a problem if you are not a picky pax.

Majority of the air still goes through the HEPA, a wee bit of bypass happens (do use some bubble wrap + tissue paper to seal as it's just a 5-10 min job), the CADR seriously is not that affected as it's just a mix of "polluted" air + HEPA filtered air at the outlet, the CADR probably stays nearly the same within a few percent range.

You will know what I mean if you have a anemometer and laser particle counter and managed to play with it esp during the 2015 indon haze season.



[Mach3.2]

Even with same brand...I think I need at least 2 sets of 1 model and 3 sets of another model to cover my house adequately. (Different size of areas needed to be covered)

Btw, I am considering if I should go for the multi brand/model approach. So if one brand or model stop production or the filter of a model is no longer available, I dun need to change all the affected APs at the same time. Very chor.

I was thinking it's easier to get HEPA filters for the AX40 because the filter is in a more "conventional" shape and form, unlike the tubular form of the xiaomi and mfresh APs.



[patcheon]

I was thinking it's easier to get HEPA filters for the AX40 because the filter is in a more "conventional" shape and form, unlike the tubular form of the xiaomi and mfresh APs.

Right now I've got 1 Philips AC4372 from the recent Philips carnival sales to cover my living room and dining area. Other than the price of both the unit and the filters during the carnival attracted me, the other plus points were since it is locally available so I think there should be local support and it does not have the ionizer function thus I hopefully think it does not produce ozone.



[Mikl1984]

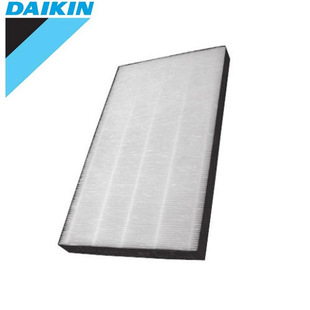

Daikin Filters

Always search Taobao for more detailed info.....!

Everything you wanna know about Daikin APs (there may be slight difference for China markets though)

The filter is packed in a quite interesting way.

http://world.taobao.com/search/sear...np_cb&abtest=_AB-LR854-LR895-PR854-PV895_2352

Rephrase you
Please check manufacter web site

Daikin completely changed this old style filters from 2012 (M,N,P,R and S series) in Japan models, but not worldwide

You find specs already

semi HEPA filter is rather big
KAFP029A4 398x230x34 218g
http://www.amazon.co.jp/dp/B0075U8E...TF8&colid=3PQOXNWOOG8VG&coliid=I2MQ0234XCU75O



[NWT1978]

I know what's the difference already.....

The Daikin TCK70P, ACK55 and some others are the JDM models. 100V. Transformers needed here or Dubai.

Dubai and SG (240V) are using the MC70, MC55 etc. Eg the ones you see on gumtree/carousell.com.sg


The Japs, as usual, reserve the best for the JDM or Japanese Domestic Market. So that one is 99% 1 pass.

http://world.taobao.com/item/38153224786.htm?spm=a312a.7700714.0.0.lAR74E#detail

The filter is very different, so many more pleats (need that due to more pressure drop)

99% pass mentioned here for the JDM TCK70P, but here it does say electrostatic HEPA already

It says they are all the same, TCK, MACK, ACK

There is a 10 minute video in this seller's listing

http://world.taobao.com/item/430179...805cb382b56a7117&spm=a312a.7700714.0.0.lAR74E

99.1%



[NWT1978]

BBQ time for Beijing.

well they started and didnt control them...

You will see the BBS getting hot now.

Xiaomi 2 air purifier = OOS nao!!

it a huge markets there... N95 masks and AP will OOS very fast during such time

fastest finger to order win

alot of increase in usage for AP and Aircons during such time...their power stations can handle the load?



[NWT1978]

I will have a look at qoo10. Voltage is not an issue, it's the same, even the plugs are 3-pin same like SG. The only problem can be not having a local warranty.

Taobao - I am not sure where do they ship to. I have a great service here provided by Aramex, called ShopAndShip, so I have like 12 addresses around the world where I can order something and they will ship to me (something like comGateway, VPost etc). I have address in Shanghai, Singapore, Hong Kong and Malaysia. But here we have to add shipping fees which are around S$25 per kg, so this can make it pretty expensive.

quite useful... got lifetime membership

but it dont consolidate so shipping fees will be

limit to USD 2500 that alot of purchase

need to fill in the export form... pay on your own the custom duties...



[WussRedXLi]

With 2 x Austin Healthmates switched on in HIGH mode with 800CFM total (1359m3/hr, indoor still 150+ ug/m3 in Beijing.



[WussRedXLi]

999!!! (PM10).

That's probably well over 2000 ug/m3 of PM10 in order to get to AQI 999 (I think aqicn never modify India to display > 999 like Indonesia)



[WussRedXLi]

Rephrase you
Please check manufacter web site

Daikin completely changed this old style filters from 2012 (M,N,P,R and S series) in Japan models, but not worldwide

You find specs already

semi HEPA filter is rather big
KAFP029A4 398x230x34 218g
http://www.amazon.co.jp/dp/B0075U8E...TF8&colid=3PQOXNWOOG8VG&coliid=I2MQ0234XCU75O

Yeah I get what you are trying to say already.

Their JDM models (like TKP70) are using the new filters which are like the typical HEPA filters that we see with the sidewalls, denser pleating and all. But the worldwide models are still left with the old ones.

And I have some suspicion to believe that they tried to dump the units here in Singapore right before the Indonesian haze season but failed miserably due to insufficient and lousy marketing. Big chance for them.

Actually it was a golden opportunity for them, the biomass haze here started to get bad from Sep 10th and stocks were going low from then on. 99.5% of the Air purifier retail stocks were gone from 1 OCt all the way to early Nov for 1.2 months.

Too bad they didn't react fast enough by shipping the units to Singapore fast, or reach out to consumers with a good deal like "discounted price of $300 for the MC70". I am sure they could have cleared several thousand units if they managed to ship here fast and advertise/sell in their local Daikin office, even if the local big consumer stores refuse to carry their brand.


I mean, heck....2 Korean sellers on qoo10.sg managed to sell some 2,000 units of Samsung AX40 in 2 months (plus extra replacement filters) and probably made a nice $$ killing.
