[Maylyn's Preview ~ Networking] ASUS RT-AC68U

[kyo9920]

Hi all, I just bought the rt-ac68u. My setup is StarHub max infinity ont to router to PC. However, I am having trouble getting past the setup page of the router. It just could not detect the internet settings. Am I missing something? I am using a MacBook Pro to configure it.

Much thanks in advance



[renfred89]

Hi all, I just bought the rt-ac68u. My setup is StarHub max infinity ont to router to PC. However, I am having trouble getting past the setup page of the router. It just could not detect the internet settings. Am I missing something? I am using a MacBook Pro to configure it.

Much thanks in advance

erm, one common possibility is that you might have connected the cables wrongly, or that the cable is not connected properly..

try verifying the connection of cables first..



[kyo9920]

Hi hi, thanks for the reply. But it's still unable to detect the internet setting. I have changed the cables.



[Ah-Pin-Kor]

Hi hi, thanks for the reply. But it's still unable to detect the internet setting. I have changed the cables.

Are you on direct ONT or using VLAN?



[maylyn]

AC87 already available in States. Any news when will hit SG shore? Hope to see it in coming Comex 2014.

It's coming soon

I want the one with 6 antennas leh....when is it coming?

ASUS RT-AC3200 is still under development, so at least a couple of months and more.



[maylyn]

Teaser

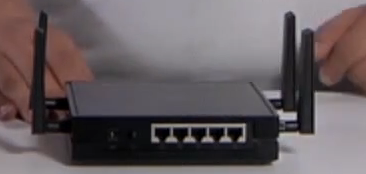

ASUS EA-AC87 4x4 WiFi MU-MIMO adapter

A few interesting bits came out of Asus's DIY guy 48 minutes long review:

1) MU-MIMO is not enabled in the firmware yet, and will be in a future firmware release
2) The USB ports on the RT-AC87 are high-power. The USB3 port for instance can provide up to 1700 mA, which should make it unnecessary to use a Y-shaped cable with portable HDDs (so, the fact the two ports are way apart won't be an issue)
3) He unveiled the EA-AC87, which will be MU-MIMO 4x4, and even have 5 Ethernet ports on it.



[negativzero]

Back to using DD-WRT for good now. After reading Merlin cutting back on development time on his firmware I went to check up on DDWRT. They finally got a kernel-level CTF module so the router can be pushed beyond 300mbps.

Always preferred DD-WRT. Their firmware allows you to on-the-fly edit important settings like conf and jffs without rebooting, plus it has more settings to tinker with than Merlin. Now can use this router on my 500mbps connection lol.



[felali]

Maylyn, thanks so much all the past year for the updates! I guess many folks here gonna go over to AC87u liao... Heh I guess I'll stick around with the now trusty AC68u (it used to be problematic) for now, owing to budget concerns. Haha



[ruffruff]

everyone using rt-ac68u are on merlin firmware?
whats the diff between merlins and that of asus?

I just move to my new place. AC68U in living room, but in my bedrooms, the wifi signals are weak ... anyway to resolve? will merlin firmware be better?



[bagger 288]

everyone using rt-ac68u are on merlin firmware?
whats the diff between merlins and that of asus?

I just move to my new place. AC68U in living room, but in my bedrooms, the wifi signals are weak ... anyway to resolve? will merlin firmware be better?

i use rmerlin for astrill app. other then that for normal user like me no diff.
u may want to get a rt-56 and set as AP



[Ah-Pin-Kor]

Back to using DD-WRT for good now. After reading Merlin cutting back on development time on his firmware I went to check up on DDWRT. They finally got a kernel-level CTF module so the router can be pushed beyond 300mbps.

Always preferred DD-WRT. Their firmware allows you to on-the-fly edit important settings like conf and jffs without rebooting, plus it has more settings to tinker with than Merlin. Now can use this router on my 500mbps connection lol.

Saw some of your posts on the dd-wrt forum.
Which build are you using now?
I was playing with 24345M, STD OLDD, and the 5GHz LED light is still not working.



[negativzero]

Saw some of your posts on the dd-wrt forum.
Which build are you using now?
I was playing with 24345M, STD OLDD, and the 5GHz LED light is still not working.

Using the latest Kong 24800. LED still doesn't work but that is inconsequential to me. Still prefer the feature set of ddwrt compared to other firmwares.



[maylyn]

ASUS RT-AC87U

It's counting down by the days

Launch is imminent

Readers might want to pop over to ASUS PCDIY to understand what new innovations and features ASUS has come up with the ASUS RT-AC87U.

@ ~> August 2014 The Best 802.11AC Router – RT-AC87U & RT-AC87R | ASUS PC DiY | If you want it done right



[Ah-Pin-Kor]

Using the latest Kong 24800. LED still doesn't work but that is inconsequential to me. Still prefer the feature set of ddwrt compared to other firmwares.

Thanks.
Does the CTF actually work on your 500Mbps connection?
Are you seeing the self-reboot problems which some folks have reported?



[maylyn]

First official ASUS RT-AC87U firmware replacing 1779/2044 firmware

ASUS RT-AC87U Firmware version 3.0.0.4.376.2061

Fixes:

1. Upgraded the latest driver for Quantenna 802.11ac processor.
2. Enhanced media bridge mode performance.
3. Enhanced performance when Intel Centrino 5300 connecting to RT-AC87U.
4. Fixed beamforming GUI bug and enabled beamforming by default.
5. Fixed AiCloud UI issue when generating file share link.

Note: The 3.0.0.4.376.1779 and 3.0.0.4.376.2044 had incompatible issue in some specific environment, so both version were removed. Please upgrade to 3.0.0.4.376.2061

More enhancements are in the works.

If one is wondering? I'm beyond this



[maylyn]

Maylyn, thanks so much all the past year for the updates! I guess many folks here gonna go over to AC87u liao... Heh I guess I'll stick around with the now trusty AC68u (it used to be problematic) for now, owing to budget concerns. Haha

You're welcome.

Do pop by the ASUS PCDIY to understand more about the new ASUS RT-AC87U, perhaps you might have a change of mind

Both the ASUS RT-AC68U and ASUS RT-AC87U have unified firmware development.



[mikengtw]

First official ASUS RT-AC87U firmware replacing 1779/2044 firmware

ASUS RT-AC87U Firmware version 3.0.0.4.376.2061

Fixes:

1. Upgraded the latest driver for Quantenna 802.11ac processor.
2. Enhanced media bridge mode performance.
3. Enhanced performance when Intel Centrino 5300 connecting to RT-AC87U.
4. Fixed beamforming GUI bug and enabled beamforming by default.
5. Fixed AiCloud UI issue when generating file share link.

Note: The 3.0.0.4.376.1779 and 3.0.0.4.376.2044 had incompatible issue in some specific environment, so both version were removed. Please upgrade to 3.0.0.4.376.2061

More enhancements are in the works.

If one is wondering? I'm beyond this

I have check ASUS site they still have not upload it to the server yet..?



[Ah-Pin-Kor]

I have check ASUS site they still have not upload it to the server yet..?

If you need it, you can get it here:
SmallNetBuilder Forums - View Single Post - ASUS RT-AC87 Firmware - Official Releases



[maylyn]

I have check ASUS site they still have not upload it to the server yet..?

Well, ASUS RT-AC87U haven't really started shipping out as yet, not like anyone on the streets have it now and in need to update the firmware besides a selected few. It's coming out very soon tho

Rest assured, the ASUS support site will have the downloadable firmware for it when the ASUS RT-AC87U ships.



[negativzero]

Thanks.
Does the CTF actually work on your 500Mbps connection?
Are you seeing the self-reboot problems which some folks have reported?

Yup the CTF works as intended. Only TCP and UDP packets are accelerated though. Haven't seen any reboots on my syslog besides my one manual reboot I did cos I thought something was not working.
