[Monitor] LCD monitor repair

[i1magic]

The buyer told me that he actually repair monitors. He told me that for my case, I just need to break 2 of the pin and the power adapter will work. I tried but the pin was so hard to break (they made it well).


So he told me to just cut the connector from the faulty power and swap to the working power adapter. He told me inside only 2 wire, + and -, use multimeter to test and can know which one is +ve and which one is -ve liao.


I did exactly that and FINALLY my monitor is working again.


Due to this experience, it lead me to make this video.

With this method, I can just use any power adapter from now on. But for this monitor, the power adapter is 24V 5A, when connecting, usually there will be spark, so do take note.


Also, with this method, I can now just buy any cheap power adapter with output 24V 5A to replace.



[ipaq4444]

does anyone try buying and swapping out the panel of the monitor? cna recommend where you usually go buy the panel?



[gaoxing84]

The Richard no longer repair monitor?
Whatsapp him no reply. Blue tick only



[i1magic]

does anyone try buying and swapping out the panel of the monitor? cna recommend where you usually go buy the panel?

The panel cost will be expensive. I think no point.



[i1magic]

The Richard no longer repair monitor?
Whatsapp him no reply. Blue tick only

Try calling.



[Goodshot]

Dell 27inch only cost $200+ , why need to repair ?



[i1magic]

does anyone try buying and swapping out the panel of the monitor? cna recommend where you usually go buy the panel?

Panel? Think just buy a new one.



[i1magic]

The Richard no longer repair monitor?
Whatsapp him no reply. Blue tick only

I also messaged him. But his reply is quite slow, which I kind of expected.

He also need to work for $$. So my plan is to just ask him to quote me how much he charge for me to bring the TV to him to do a analysis.

Just settle it once and for all.



[eauyong]

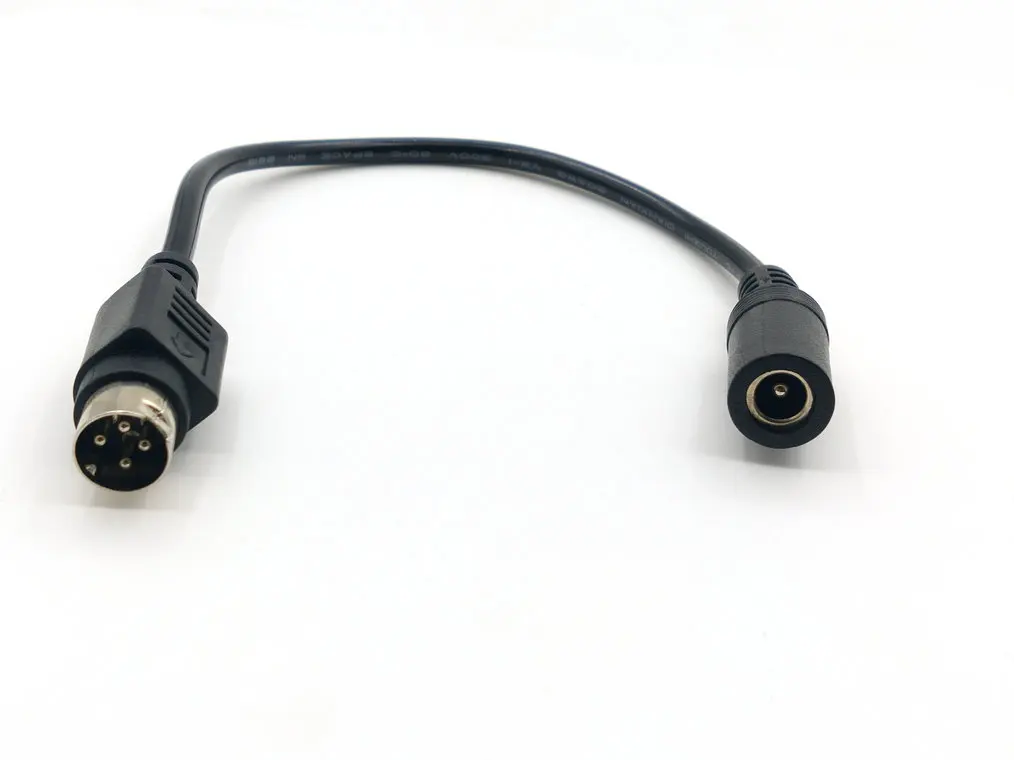

Much neater and easier to use this 2 combo. left side 1 pc Male (green colour) connect to below "DC Female 5.5*2.1mm to male 4 Pin Cable Lead"



[eauyong]

If adaptor comes with this Male DC Connector 2.1*5.5mm, then just get the 1pc DC Female 5.5*2.1mm to male 4 Pin Cable Lead



[i1magic]

Much neater and easier to use this 2 combo. left side 1 pc Male (green colour) connect to below "DC Female 5.5*2.1mm to male 4 Pin Cable Lead"

Can share link for this one?



[eauyong]

Can share link for this one?

1pcs DC Female 5.5*2.1mm to male 4 Pin Cable Lead Link from Aliexpress.
Also selling at Lazada SG Link.



[i1magic]

Much neater and easier to use this 2 combo. left side 1 pc Male (green colour) connect to below "DC Female 5.5*2.1mm to male 4 Pin Cable Lead"

This one cannot. The polarity is wrong.

Need polarity like this one then can.



[jeffrey745]

Is it worth it to repair my dell s2361h monitor with cracked screen?

I got a repairman contact from carousell called Richard, he quoted me $120 for repair and 1 month warranty



[win_man]

Anyone knows if this condition can be repaired? I believe some components burnt



[86technie]

Anyone knows if this condition can be repaired? I believe some components burnt

1) Try another cable as well as another PC
2) If it is not cable than it is panel issue, repair cost isn't worth it.
As you can get a brand new monitor.



[Phen8210]

for sure the panel sot plug alrdy ah see the corners
