[Recommend] Good Mechanical Keyboard

[YouHeypiCanLiao]

It's really just a personal preference thing.
I went from Blues (Clicky tactile) > Browns (tactile) > Logitech Romer G (also tactile) > Silent tactiles > Silent linears > Gateron yellows (Not yet tested, still waiting for shipment).
Initially i just can't get used to the linear switches. But after spending like 1-2 weeks with it, i slowly got "converted" to a linear switch person. I can type relatively fast, so i prefer a non-tactile feel when typing. Less resistance, more smooth.

My fiancee still prefers tactile switches though.

You got the milky yellow gateron right . It's value also less than 50 cents per cap.

What pcb you're using ?



[YouHeypiCanLiao]

https://www.keychron.com/products/keychron-k12-wireless-mechanical-keyboard?variant=39299046932569sian missed this.

think can get no lights ( since I don't use it ), maybe get alu with banana optical when it's released



[dreamaurora]

Just got this baby from Amazon. Yup, this is the one with AimPad, and magnetic wrist rest (so much better than those plastic clip one). Going to test later with racing games if it really works.



[FroztSpectre]

You got the milky yellow gateron right . It's value also less than 50 cents per cap.

What pcb you're using ?

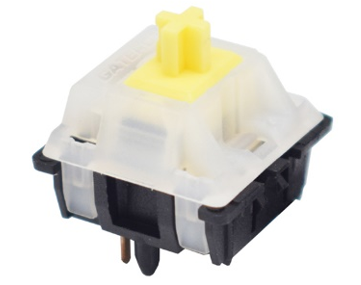

Yep, Gateron Yellow Milky Top, Black Bottom.
AKA Gateron Yellow KS-3-X47. Each switch was like S$0.23 (before shipping). You can also find them on Carousell, saw someone selling each switch for 30cents.

There are other Gateron Yellows.
https://www.theremingoat.com/blog/gateron-yellow-switch-reviewKS-3-X1 is the Milky top and milky bottom. Some say KS-3-X47 is smoother than KS-3-X1.

Using Taobao chinese PCB. Doing a cheap budget build.



[purpleberry]

you mean too high .need wrist rest later ?


Read HWZ Forum Rules!

Yes definitely too high unless you like to "hover" when you type.



[purpleberry]

Yes preferably all from Taobao since is the cheapest. For 60% it depends if you prefer with or without arrow keys.



With Arrow Keys

Layout almost identical to Filco Minila. IMO, the best layout for 60% keyboards.



[YouHeypiCanLiao]

Yes preferably all from Taobao since is the cheapest. For 60% it depends if you prefer with or without arrow keys.

Without Arrow Keys

With Arrow Keys

Layout almost identical to Filco Minila. IMO, the best layout for 60% keyboards.

Use what PCB ah?



[YouHeypiCanLiao]

Yep, Gateron Yellow Milky Top, Black Bottom.
AKA Gateron Yellow KS-3-X47. Each switch was like S$0.23 (before shipping). You can also find them on Carousell, saw someone selling each switch for 30cents.

There are other Gateron Yellows.
https://www.theremingoat.com/blog/gateron-yellow-switch-reviewKS-3-X1 is the Milky top and milky bottom. Some say KS-3-X47 is smoother than KS-3-X1.

Using Taobao chinese PCB. Doing a cheap budget build.

What's our TB budget build? Can SiC ma?



[YouHeypiCanLiao]

Yes definitely too high unless you like to "hover" when you type.

But is it usually the build is high or normal height? My prebuilt anne pro2 just nice IMHO



[purpleberry]

But is it usually the build is high or normal height? My prebuilt anne pro2 just nice IMHO

It's just a bit higher. My Filco Minila can type without palm rest and it's fine. I think your Anne Pro 2 about the same height. Keychron ones are higher by a few mms but can feel the difference.

Maybe next i'll try those slim profile ones. Keychron seems to be very active in evolving their kbs unlike other brands. Filco the laziest of them all lol



[jonnyboy91]

Use what PCB ah?

Without arrow keys one uses Gk61X PCB, while the arrow keys one uses GK64X PCB.



[YouHeypiCanLiao]

Without arrow keys one uses Gk61X PCB, while the arrow keys one uses GK64X PCB.

if need wireless is GK64XS PCB?



[YouHeypiCanLiao]

Question if get this kit
https://shopee.sg/GK64XS-GK64X-mech...-music-rhythm-wireless-i.233254872.3237885534
then just need to get switches + keys right?

p/s : is taobao cheaper ?



[jonnyboy91]

if need wireless is GK64XS PCB?

Yup, with the S at the back is wireless PCB.

Question if get this kit
https://shopee.sg/GK64XS-GK64X-mech...-music-rhythm-wireless-i.233254872.3237885534
then just need to get switches + keys right?

p/s : is taobao cheaper ?

Yes only need switches and keycaps.
Taobao is slightly cheaper. Do take note on the price differences between plastic case and Alu/Wood/CNC case.



[FroztSpectre]

What's our TB budget build? Can SiC ma?

I've made a 2 TB budget built so far, and have a spare kit lying around in preparation for my TB budget gateron yellow build.

Previous build (104 keys, no RGB, no-hotswap):
https://forums.hardwarezone.com.sg/threads/recommend-good-mechanical-keyboard.5031425/post-134229871Used their stock stabilizers, ownself clip, straighten the stabilizers all that myself.

Cost involved (Exclude Shipping):
Basic 104 keys Keyboard Kit (No switches and no Keycaps): ~$25SGD
110 Outemu Silent White switches: ~$22SGD
Keycaps Set: $28.02
Band-aid: Free? use existing ones.
Keyboard Foam dampener: Free. Used packaging foam.
Lube: See previous previous build. I reused them.
Other Cost Involved:
Budget Soldering Machine: $16.86SGD
Soldering wire: $2.50SGD

Previous Previous build (TKL, RGB, hot swappable):
Case + PCB (RMB189): 天一Ty87/104键rgb热插拔套件DIY客制化机械键盘热插拔轴座键盘
Switches (RMB 90): 90x Outemu Silent Greys
Keycaps (RMB129): Macarons 143 keys, XDA Profile
Stabilizers: Stock. Ownself tune and mod.
Foam: Free. Used a spare sponge foam
Lubes and other cost:
Krytox GPL105 12grams: RMB26
Krytox GPL205 G0 12grams: RMB28
Acrylic stand + brushes for lubing switches: RMB32
Stabilizers lube: Seller of the Case+PCB included some free thick lube for my stabilizers. Unknown brand.

Potential new build (104 keys, no RGB, adding own white light LED and hotswap socket):
Case + PCB (RMB119): 天一 TE87/104/980键机械键盘 客制化机械键盘diy手工焊接板套件
Switches (RMB107.80): 110x Gateron Yellows
Keycaps: Undecided. I have spare keycaps that i bought previously as well. Previously bought this flowery sakura keycaps for RMB89 for my fiancee, together with the macaron keycaps.
Stabilizers: Stock stabilizers. Ownself tune and mod. I previously bought some spare cheap stabilizers from Taobao for RMB20 though. Still unused till now.
Foam (RMB18): 87/104/108/980键盘夹心棉消音棉隔音棉客制化键盘定位板夹心棉
Lube: Reuse. But bought extra Permatex 22058 so i can spam more lube on my stabilizers.
200x LED lights (Used EZbuy. S$2.60~?): 3mm发光二极管LED灯珠 高亮白发红黄蓝绿共阳阴紫色七彩红发绿发
Flim: Not yet bought. Either TX Switch Film v2 from Carousell for S$8.50 or Taobao for RMB21.
200x Hotswap Sockets Pins (RMB9.80): 机械键盘轴套筒热插拔轴座铜鸡眼灯空心铆钉灯座樱桃罗技改拔插轴
Reuse soldering wire and soldering machine.

So what's the difference between the TE kit and TY kit?
TE kit is non-hotswap, and no RGB. You want Hotswap and RGB, u gotta buy your own side accessories and solder them on yourself. Even if u don't want to buy side hot-swap sockets, you'll still need to solder in your own switches.
TY kit cost like extra RMB120 more for the 104 keys. But comes with hotswap socket and RGB lights. Don't have to do anything extra. Way more beginner friendly.



[YouHeypiCanLiao]

OK my wife's RK68 came.

Heftier than my Anne Pro2.
Can use wireless OR BT. The keys are good. Limited RGB ( Not that she is using ).
I think this is way better than Tecware.

Perhaps I can buy this and just change the KeyCaps to customize?



[jonnyboy91]

OK my wife's RK68 came.

Heftier than my Anne Pro2.
Can use wireless OR BT. The keys are good. Limited RGB ( Not that she is using ).
I think this is way better than Tecware.

Perhaps I can buy this and just change the KeyCaps to customize?

Yes you can, if you want to change switches also can since the RK68 is hotswappable.



[roastedcoffeebean]

is epomaker popular among this sub? thinking of their 84 keys one



[jonnyboy91]

is epomaker popular among this sub? thinking of their 84 keys one

Doubt so since Keychron K2v2 is cheaper, available locally and wireless compared to Epomaker EP84



[roastedcoffeebean]

Doubt so since Keychron K2v2 is cheaper, available locally and wireless compared to Epomaker EP84

i think the higher price is due to the pbt caps
