Singtel 10Gbps ZTE F8648P superadmin password.

[lightstal]

It could be SingTel pushed the default ONR profile to your ONR (sometimes it happens). You may want to repeat the bridging process to see if you get it working again.

Tried multiple times on Monday already I did initially see that the default ONR profile was pushed however further attempts at bridging it only resulted in 1 IPv4 address being allocated...



[xiaofan]

Tried multiple times on Monday already I did initially see that the default ONR profile was pushed however further attempts at bridging it only resulted in 1 IPv4 address being allocated...

I see. In that case the dual IPv4 address loophole has been patched, at least for your case. Maybe it is related to the new ZTE F8648P XGS-PON ONR FW or even the backend. Let's see if other users who bridged the ZTE XGS-PON ONR report the same issue or not.

But at least you can still bridge the 10G port, right?



[ddgp1105]

my ONR version F8648P V2.1.10P5N19, anyone on Singtel (ZTE F8648P) still can bridge? please PM me, need your help, thanks



[xiaofan]

my ONR version F8648P V2.1.10P5N19, anyone on Singtel (ZTE F8648P) still can bridge? please PM me, need your help, thanks

Just wondering what is the problem you are facing. Thanks.



[xiaofan]

@Sarahlina

Just wondering if you encounter the issue of @lightstal that he loses the capability to get dual IPv4 address. Thanks.

Now I am quite interested in this thread as I have subscribed to Singtel 5Gbps basic plan at S$49.90 per month, which will come with this ZTE F8648P XGS-PON ONR.



[BlonkBloink]

I have lost capability of bridging more than 1 IPV4 address too. Whole house network down.



[xiaofan]

Singtel recommended setup with HB810.

My intended setup --hopefully I can still bridge the ZTE ONR. Let's see. BTW, I can return Singtel TV box as well if it does not work.



[BlonkBloink]

Singtel recommended setup with HB810.

My intended setup --hopefully I can still bridge the ZTE ONR. Let's see. BTW, I can return Singtel TV box as well if it does not work.

Forget it liao. Almost all plan except the gamer one cannot request more than 1 ip address. Just tried at my friend house



[xiaofan]

Forget it liao. Almost all plan except the gamer one cannot request more than 1 ip address. Just tried at my friend house

That is interesting.

I am still getting two IPv4 addresses with my current 1Gbps plan with SingTel ONT with the VLAN switch trick (only for SingTel ONT users).



[BlonkBloink]

That is interesting.

I am still getting two IPv4 addresses with my current 1Gbps plan with SingTel ONT with the VLAN switch trick (only for SingTel ONT users).

ONR bridge port cannot liao. As long as its an ONR plan cannot. Called ST, CS states "security measures" and after some talking asking to escalate ticket to engineer quoted me with "its our equipment not happy can cancel"



[xiaofan]

ONR bridge port cannot liao. As long as its an ONR plan cannot. Called ST, CS states "security measures" and after some talking asking to escalate ticket to engineer quoted me with "its our equipment not happy can cancel"

Anyway, I believe there should be a way to configure the ONR as ONT with single IPv4 address given.

Let's hear from other users first.



[xiaofan]

Anyway, I believe there should be a way to configure the ONR as ONT with single IPv4 address given.

Let's hear from other users first.

Reference for the Nokia G240 GPON ONR from WC thread.
1) Configure the GPON ONR in ONT mode.
https://forums.hardwarezone.com.sg/...band-provider.5494964/page-115#post-153190390

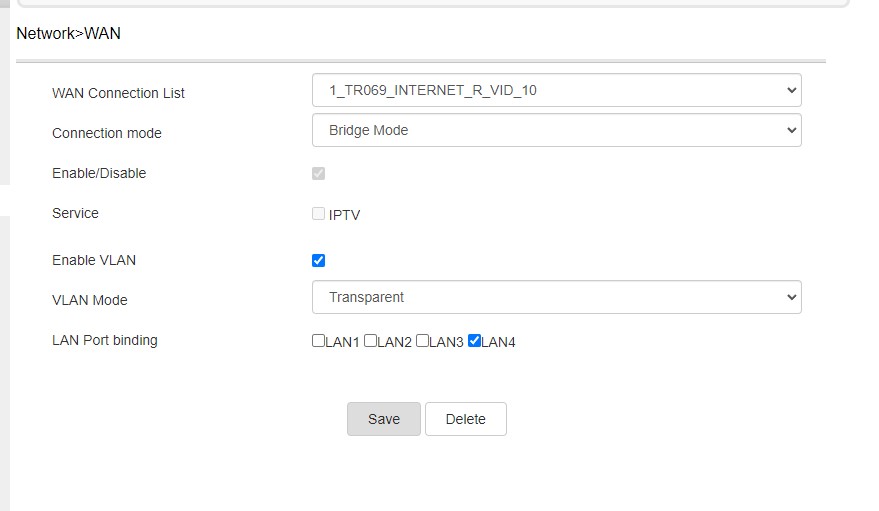

Good News, I manage to bridge the Nokia G-240G-E. We should do the bridge in WAN Section like below:

Once we setup the brigde in WAN, the bridge in LAN is missing.

Now the other port does not able to connect to internet except port 1.
Next step is to try out dual bridge port to AX86U in dual WAN load balance,
but now i don't have any device to see the max speed.

2) Configure the GPON ONR in another mode where he can get two IPv4 addresses.
https://forums.hardwarezone.com.sg/...band-provider.5494964/page-115#post-153223908

Yeah, I manage to make the Dual WAN work by changing the another WAN2 Mac address to other than WAN1. The Nokia must reboot in oder to get both WAN detect public IP(it's take some time for it to get IP).

Here is some speed test using asus router build-in tools(stupid me ... should had know this).

Speed test show good result, but actual real use seem not the case.



[lightstal]

Anyway, I believe there should be a way to configure the ONR as ONT with single IPv4 address given.

Let's hear from other users first.

Reference for the Nokia G240 GPON ONR from WC thread.
1) Configure the GPON ONR in ONT mode.
https://forums.hardwarezone.com.sg/...band-provider.5494964/page-115#post-153190390



2) Configure the GPON ONR in another mode where he can get two IPv4 addresses.
https://forums.hardwarezone.com.sg/...band-provider.5494964/page-115#post-153223908

I mean yeah for option 1 it could be possible by setting the ONR to ONT mode but I at this point I don't dare to do it cause the last time I tried smth like this the whole thing bricked xD shown



[xiaofan]

I mean yeah for option 1 it could be possible by setting the ONR to ONT mode but I at this point I don't dare to do it cause the last time I tried smth like this the whole thing bricked xD shown

I tend to believe the "ONT" option will work, but I understand that you do not want to try right now.

I also tend to think there is a way to carry out factory reset and go back to the default ONR mode.

Let's hear more reports from others.



[xiaofan]

BTW, somehow I guess this new problem may have something to do with the DHCP server upgrader (maybe as part of the IPv6 deploymen). I could be wrong though.



[HiHelloBye]

interesting to read from this new developments...



[acertey]

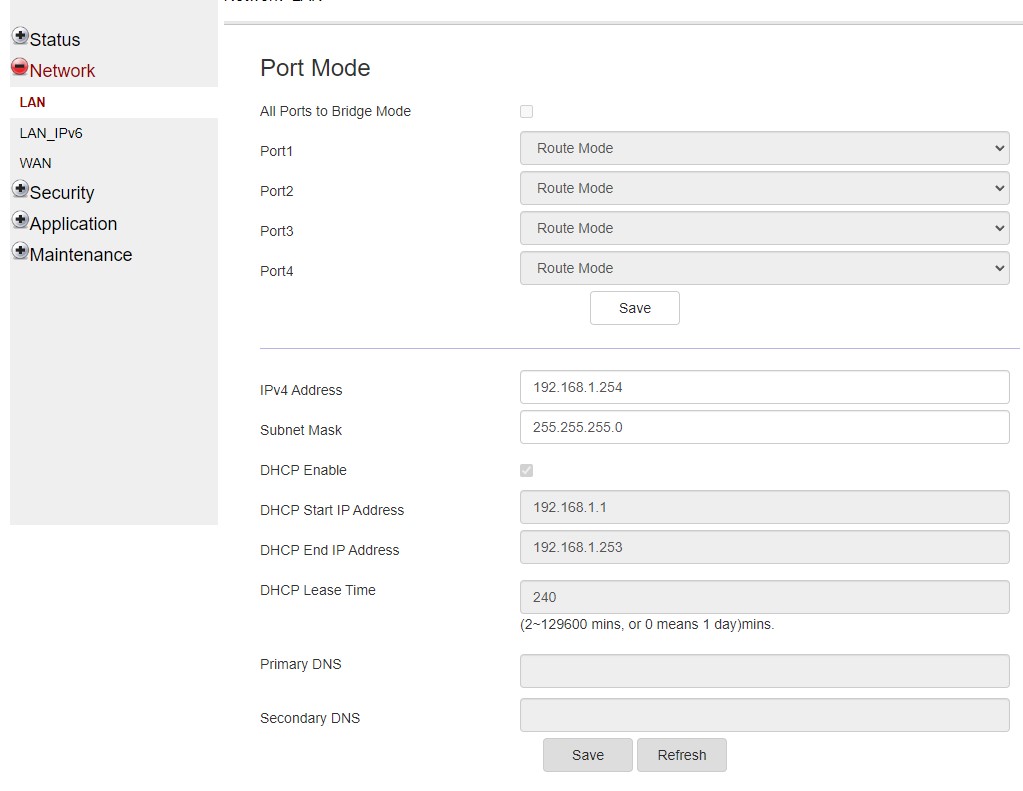

Hi there, mine seems to be a bit weird. I cannot click on the all ports to bridge mode.

Is this a firmware version issue? My software version is 3FE46606IJKI11(1.2301.211)

it has gotten me really excited to be able to bridge 1Gbps, my plan still about 9 months to go.

Although Singtel called, but the offer is not really attractive. So will stay on this until my plan is up.

Is this how it is supposed to be done?



[xiaofan]

Hi there, mine seems to be a bit weird. I cannot click on the all ports to bridge mode.

Is this a firmware version issue? My software version is 3FE46606IJKI11(1.2301.211)

it has gotten me really excited to be able to bridge 1Gbps, my plan still about 9 months to go.

Although Singtel called, but the offer is not really attractive. So will stay on this until my plan is up.

Which ONR model? This thread is more about the ZTE F8648P XGS-PON ONR. Since you are using this ONR, you may want to go to the other thread.
https://forums.hardwarezone.com.sg/...nr-replacement-with-onu-or-pon-stick.6938685/



[acertey]

ok sure, thanks. On Nokia 240



[xiaofan]

ok sure, thanks. On Nokia 240

For Nokia G240, you can go to that thread and pm those who have the success of bridging for the super-admin password. The super-admin login information of Nokia G240 ONR has not been publicly posted to this forum.
